The Background: An Innovative Project Facing a Natural Bottleneck
Our French client had developed a revolutionary product. Their device leverages acoustic technology to monitor pest populations in farmlands and forests, paving the way for precise, environmentally friendly agricultural management. However, the project's success was entirely dependent on the core device's ability to operate reliably in harsh outdoor conditions over the long term.
Before contacting us, the client's team had already invested significant effort into protecting the device's sensitive internal PCB. They experimented with various protective measures, including improved plastic enclosures and even expensive custom-milled metal housings. The results were consistently disappointing. Moisture always found a way to penetrate the enclosure, leading to board corrosion and short circuits, while prolonged sun exposure accelerated the aging of electronic components. After several rounds of failed prototypes, their project budget was under severe strain, and the team was facing immense pressure.
The First Contact: From a Simple Quote to Uncovering the Root Cause
The client initially reached out to Zero Mistake Solutions for a quote on a new batch of prototypes. Their primary goal was to find a more cost-effective manufacturing partner to alleviate their budget crisis. However, we are more than just a build-to-print supplier.
During an in-depth project consultation, our project manager, Isabella, picked up on critical details. As the client described the "unexplained" failures of their previous prototypes, Isabella’s extensive experience with complex electronic assemblies immediately pointed to a classic problem: a systemic failure caused by an inadequate defense against a harsh outdoor environment.
She reasoned that no matter how well-sealed an enclosure is, microscopic gaps and pressure differentials caused by temperature fluctuations can inevitably lead to moisture ingress. Relying solely on the "passive defense" of an outer shell was insufficient. The root cause of the problem was that the most critical and vulnerable part of the product—the PCB assembly itself—had no "active," direct protection.
Crafting the Solution: Exceeding Expectations with Expert Counsel

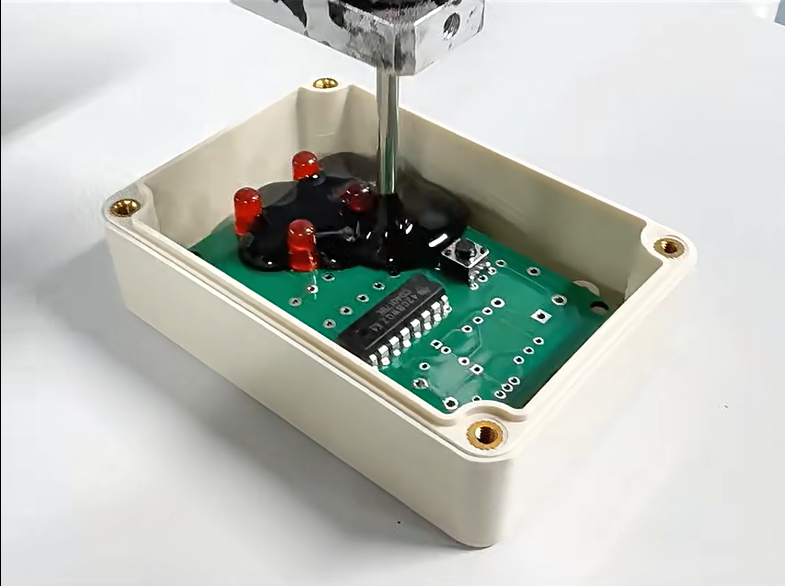

Project Manager Ms.Isabella immediately convened our engineering team for an internal review. The consensus was clear: to solve this problem permanently, the PCB needed its own impenetrable "armor." We proposed a solution the client had never considered before: our professional PCB Potting Services.
1. The Strategic Recommendation: Why Epoxy Potting?
We began by explaining the value of the potting process. By completely encapsulating the PCB assembly in a solid, cured compound, we could create a void-free, monolithic block that is completely isolated from the external environment. This would perfectly address all their challenges at once: it would be waterproof, moisture-proof, dust-proof, UV-resistant, and highly resistant to shock and vibration.
Among the various potting materials, we initially recommended an epoxy resin due to its key advantages for this application:
Superior Hardness and Adhesion: Cures into a rigid, durable mass that provides exceptional protection against physical impact.
Excellent Chemical Resistance: Withstands acidic elements in rainwater and other potential chemical corrosives.
Outstanding Electrical Insulation: Prevents short circuits caused by moisture.
2. Data-Driven Material Selection: A Tailored Fit for the French Climate
Simply recommending epoxy was not enough. A professional PCB Potting Services provider delivers a solution precisely tailored to the application. Our team conducted deeper research:
Climate Analysis: We studied the climate data for the regions in France where the product would be deployed. Most of France has a temperate maritime climate with consistent year-round rainfall and high humidity. This meant the potting compound needed to have best-in-class moisture and water resistance. At the same time, summer sun intensity demanded a high degree of UV (ultraviolet) resistance.
Serviceability Assessment: We discussed the product's internal maintenance and component replacement frequency with the client. They confirmed that the design was mature and, once deployed, the internal components were not expected to be serviced or replaced. This critical piece of information allowed us to select a permanent, rigid epoxy for maximum protection, without needing to factor in the reworkability required for serviceable parts.
Based on this analysis, we selected a specially formulated black, UV-resistant epoxy with a low coefficient of thermal expansion (CTE).
Black Color: Acts as a light blocker, effectively shielding internal components from damaging UV radiation.
UV-Resistant Formula: Ensures the potting material itself will not degrade, yellow, or crack under long-term sun exposure.
Low CTE: Guarantees that as temperatures fluctuate, the potting compound expands and contracts at a rate similar to the PCB components, preventing thermal stress that could damage solder joints.
Implementation and Results: From Prototype to a Truly Reliable Product
After receiving the client's approval, we moved quickly to produce new prototypes featuring the potting process. Our meticulous process control ensured each unit was perfectly potted, free of voids or air bubbles, providing complete and seamless encapsulation of the circuitry.
The new prototypes were sent to France, where the client subjected them to the most rigorous environmental testing they had ever conducted, including prolonged water submersion tests, high-and-low temperature cycling, and intense UV exposure. The results were a resounding success. The devices performed flawlessly, and post-test inspection revealed the internal circuit boards were in pristine condition.
A project that was once on the brink of failure due to environmental challenges was successfully resurrected. Through our expert intervention, the client gained not only a solution to their immediate problem but also significant long-term value:
Drastically Reduced Field Failures: The product failure rate dropped to near zero, significantly lowering the client's warranty and after-sales service costs.
Significantly Increased Product Lifespan: The ultimate protection provided by the potting process allowed the product to achieve and even exceed its designed operational life.
Enhanced Brand Reputation: The client could now confidently launch a technologically advanced product backed by genuine durability and reliability.
Conclusion
This case perfectly illustrates the service philosophy of Zero Mistake Solutions. We are not just a manufacturer; we are a dedicated partner and problem-solver for our clients. By deeply understanding our clients' project challenges and offering value-added services that go beyond traditional manufacturing—like our expert PCB Potting Services—we help turn a brilliant idea into a successful commercial product. This is the true value of our comprehensive Box build Solutions: achieving excellence by perfecting every detail.
